Configuration Setup

INC - Include Another Config File

Back to TOC

This simple statement allows to include configurations from another configuration file. The syntax is

INC ;; <file name>

If the included file <file name> itself contains an INC statement, the inclusion will be done recursively. In order to avoid possible infinite include loops, each include file is only added once.

OPT - General Options

Back to TOC

General options globally steer the behaviour of HepFastSim. Some options have impact on the simulation itself, others are related to storage options or histogramming.

This table shows all parameters that are available. They can appear either in the config file in a line starting with OPT or in the options string directly passed to the HepFastSim.C macro (see Running the Simulation).

Parameter Meaning Default
verbose verbosity level (the higher the more is printed) 0
info print parameter infos 0
gen name of generator config file global options file
det name of detector config file global options file
ana name of analysis config file global options file
storeopt store options for trees; veto by prepending ! to option. Available options:
  all, cms, 2body, dalitz, pid, micro, truth, pos, fit, mult, max, sum, shape all (store all)
pidmode global PID mode: chi2 or lh chi2
mode arbitrary mode number stored in all TTrees 0
tag arbirtary tag (string) appended to output file ””
print cycle (number of events) to update live histos / print event number 1000
errlvl ROOT error level output suppression (number from 0 to 4) 0 (no suppression)
mcphot number of additional low energetic photons allowed for MC truth match 5
mcethresh energy threshold for low energetic photons 0.03 [GeV]
bzfield field strength of optional solenoid field in z-direction around IP 0.0 [T]
prop2ip flag: propagate (secondary) tracks to z=0 false
rndseed random seed (for reproducibility) 0 (not fixed)
hconf canvas configuration for live historgrams as <padwidth>, <columns> 400,4
hopt default histogram draw option ”” (ROOT default)
legtxt default legend text size 0.04
legwid default legend width 0.25
legmarg default legend margin 0.3
noleg flag: globally suppress legends false
nostat flag: globally suppress statistics box false
nmc flag: generate MC truth TTree false
savenmc flag: save MC truth TTree to output file false
savehist flag: save histograms to output file false
savetree list of analysis TTree names to store (1 = all) 1
savefig file name to save live histogram canvas ”” (do not save)
nosave suppress all file output (trees, hist, fig) false
file name of output file ana_<cfg>_<tag>.root

ADD - Particle Database Manipulation

Back to TOC

This keyword allows to perform manipulations of the particle database (TDatabasePDG), adding new or cloning existing particles as well as adding decay channels. This feature is useful when simulating unknown (exotic) particles with certain properties. The basic syntax is

ADD ;; particle=<name> : <parameter list>

where the specification of the parameter particle is mandatory for any kind of action. The available parameters are

Parameter Meaning
particle = <name> Name of the particle. Can be an existing or new name, depending on action (mandatory).
alias = <name> Copy properties (mass, width, charge) from alias particle.
mass = <mass> Mass of new particle. Overrides value from alias if both are specified.
width = <width> Width of new particle. Overrides value from alias if both are specified.
charge = <charge> Charge of new particle. Overrides value from alias, estimated from name if missing.
pdg = <code> PDG code of new particle. If not given, an automatic code is generated (optional).
addcc Flag. Adds charged conjugate with adapted name, opposite charge and PDG code.
decay = <particle list> Add a decay channel by specifying daughter list <particle list>
bf = <fraction> Branching fraction of decay. Default = 1.

Examples:

ADD ;; particle=X(4444) : mass=4.444 : width=0.05                # add new neutral particle X(4444)
ADD ;; particle=Z(4000)+ : alias=Z_c(3900)+ : mass=4.0 : addcc   # add new charged particle Z(4000)+ and c.c. Z(4000)- based on existing Z_c(3900)+

ADD ;; particle=myJpsi : alias=J/psi : decay=mu+ mu- : bf=0.5    # add clone of J/psi with decay myJpsi -> mu+ mu- (50%)
ADD ;; particle=myJpsi : decay=e+ e- : bf=0.5                    # add second decay myJpsi -> e+ e-   (50%)

This generates the output (with verbose=1)

###  INFO    -- [AddParticlePDG] --  Added particle: X(4444)                70000	Mass:   4.4440 Width (GeV): 5.0000e-02	Charge:   0.0
###  INFO    -- [AddParticlePDG] --  Added particle: Z(4000)+               70001	Mass:   4.0000 Width (GeV): 2.8200e-02	Charge:   3.0
###  INFO    -- [AddParticlePDG] --  Added particle: Z(4000)-              -70001	Mass:   4.0000 Width (GeV): 2.8200e-02	Charge:  -3.0
###  INFO    -- [AddParticlePDG] --  Added particle: myJpsi                 70002	Mass:   3.0969 Width (GeV): 9.2900e-05	Charge:   0.0
###  INFO    -- [AddParticlePDG] --  Added decay channel for 'myJpsi':       0     0  5.00000e-01     2     mu+(     -13)   mu-(      13)
###  INFO    -- [AddParticlePDG] --  Added decay channel for 'myJpsi':       1     0  5.00000e-01     2      e+(     -11)    e-(      11)

GEN - Event Generation/Input

Back to TOC

There are several ways to generate input event for HepFastSim. The general syntax is

GEN ;; <generator keyword> : c = <channel> : f = <fraction> : <parameter list for this event input>

where <generator keyword> acts as a flag to enable the corresponding event input. There are two settings, which all generators have in common, namely an arbitrary channel number c and fraction f reflecting the probability to be triggered. The latter is only relevant, if more than one event sources are connected. In that case the sum of all fractions is used as normalization, so that the actual probability is

\[P_j = \frac{f_j }{\sum_i(f_i)}.\]

In case no fraction is specified, the generator is always active, and the generated tracks are added to the particle list all the time. This feature can be used to study event mixing or the appearance of additional (fake/ghost/clone) tracks.

The generator keyword is one of the following four:

Keyword Generator description
evtreader Reader for EvtGen ROOT ouput
partreader Reader for TClonesArray of TParticle (= output format of DPM and FTF generators)
box Box generator (particle gun)
phsp Phase-space decayer HepFastPhspGen

evtreader

Back to TOC

The usage of evtreader is very straigh-forward, since there are basically no things to specify except the file name file, the tree name tree inside the file, the channel number c and fraction f. The syntax simply looks like this:

GEN ;; evtreader : c=1 : f=0.2 : file=ppbar_jpsi2pi.root : tree=ntp

If the tree has the default name ntp, this default setting can be ommitted.

partreader

Back to TOC

The usage of partreader is quite similar to that described above. However, since these readers are assumed to be generic/background event inputs, there are a few more options. Firstly, there is the possibility to filter the input by looking for certain particles (not) to appear. Secondly there is a switch to enable channel mapping, which helps to perform background analysis. The options are

The options veto and trig can be applied at the same time. Since any non-stable particle found in the list of generated particles will be decayed according to the decay-list from TDatabasePDG until only finals states (or particles without any decay channels defined) are left, the veto and trigger options are applied to the complete decay chain.

Example:

GEN ;; partreader : f=1 : file=ftf_4gev.root : tree=data : veto=K_S0 : trig=Lambda0 cc : mapbg=10000

This reads the events from the given source (the default tree-name tree=data can be ommitted as well) and only accepts events containing a Lambda0 or anti-Lambda0, but without a K_S0 in the decay chain. It dumps a background map bgmap_0.txt with channel numbers starting at c=10000.

One word of caution: Since events are read from a file and thus are limited, we can run out of events when veto and/or trigger are too selective. So the user should make sure, that the input file has sufficient number of events stored.

box

Back to TOC

The box generator acts as a particle gun, which shoots arbitrary particle (without boost) into defined parts of phase space. Parameters that can be specified are

For each event, a multiplicity is uniformly chosen from the list mult, and for each particle to be generated, a particle type is selected from the list pdg, which gets assigned random properties according to the selected phase space region in p, tht and phi.

Example:

GEN ;; box : p=1,2 : tht=22,140 : costht : pdg=pi+-, K+-, p+- : mult=0,0,2,4

Here, we generated an even number of final state hadrons between 0 and 4 particles, where half of the time no particle is generated (we have two times zero, and two times non-zero multiplicity). Since there is no fraction f defined, the generated particles are appended to the list of particles for every event generated from other sources.

phsp

Back to TOC

The phase space decayer implemented as the class HepFastPhspGen based on ROOTs TGenPhaseSpace is the most versatile and powerful but also most complex generator to be configured. It primarily acts as a signal channel generator, but it can also be used for either specific background channels, or in combination with a parametrization file from generic generators (like DPM or FTF), as generic background generator. The latter possibilty probably makes it to the most useful generator since it makes HepFastSim completely independent of any external input even for (rough) background studies.

Using phsp basically requires two steps, that are:

  1. Setting up the initial system, and then
  2. adding an arbitrary number of decay channels.

For generic background, a file input with parametrized cross section curves can be used, which formally adds many decay channels at once like under 2.

phsp - Setting up initial system

The first thing to do is to setup the initial reaction. This can either be done by defining the center-of-mass energy E_cm, or one or both beam momenta p1 and/or p2. In case of asymmetric reactions the beam and target particles need to be defined as well. Only one configuration line for setting up phsp is allowed, any additional lines of that kind are simply ignored by the parser.

Center-of-mass - symmetric reaction

This initial system requires the least amount of information. Since in a symmetric reaction the masses of the beam particles are not needed to compute the initial Lorentz-vector, this information does not need to be defined. Any consequences like e.g. baryon number or angular momentum conservation having impact on the outgoing particles is in the responsibility of the user. As minimum input only a single number, the center-of-mass energy E_cm, is needed, represented by the parameter ecm. What can be given as a second parameter is a Gaussian resolution d_Ecm. The value of E_cm will be randomly chosen from the corresponding Gaussian distribution G(E_cm, dE_cm). An optional selection range can be defined to avoid outliers in the Ecm being many sigmas away. Default range is +-3 d_Ecm.

Besides a fixed number or Gaussian for the distribution of E_cm, there are two other ways to specify the latter, namely by an arbitrary TFormula or a histogram. Summarized, the syntax is (all units are GeV):

Examples:

GEN ;; phsp : ecm=4.6                        # just define E_cm as a fixed number
GEN ;; phsp : ecm=4.6,0.01                   # Gaussian distribution G(4.6,0.01) with a default +-3 sigma cut
GEN ;; phsp : ecm=4.6,0.01 : range=4.5,4.7   # E_cm = random number from Gaussian(4.6,0.01) with a +-0.1GeV cut (10 sigma)

GEN ;; phsp : fecm=ROOT::Math::crystalball_pdf(x,1,3,0.02,4.6)        : range=4,5  # E_cm distribution = crystal ball function
GEN ;; phsp : fecm=TMath::Gaus(x,4.58,0.05)+3*TMath::Gaus(x,4.6,0.02) : range=4,5  # E_cm distribution = sum of two Gaussians

GEN ;; phsp : hecm=hecm.root,hecm             # use E_cm distribution from histogram hecm in file hecm.root
Center-of-mass - fixed target reaction

In order to setup a fixed target reaction

The latter is used to determine the masses needed to compute the total Lorentz vector. All the rest is like described in the previous section.

Examples:

GEN ;; phsp : ecm=4.6 : fixtarget : reaction=anti-p-,p+              # E_cm = 4.6 GeV with a anti-p p fixed target reaction
GEN ;; phsp : hecm=hecm.root,hecm : fixtarget : reaction=anti-p-,p+  # E_cm from histogram with a anti-p p fixed target reaction
Individual beam momenta

The alternative way to define the inital system is via the specification of one or both beam momenta p1 and p2(where both momenta are interpreted along the z-axis). This allows setting up asymmetric beam configurations different to fixed target kinematics. The setup is syntactically identical to the one for E_cm, just with different parameter names. Units are GeV/c.

Be aware that for colliding beams the two momenta must have opposite sign!

Examples:

GEN ;; phsp : p1=10.3 : reaction=anti-p-,p+      # p1=10.3, p2=0 => E_cm = 4.6 GeV with a anti-p p fixed target reaction
GEN ;; phsp : p1=9.0 : p2=-3.1 : reaction=e-,e+  # BaBar like reaction with E_cm = 10.56 GeV and beta*gamma = 0.56

phsp - Add Decay Channel

After the initial system has been defined, arbitrary many decay channels can be added to the decayer, each with a certain probability to be generated, similar to the decay files of EvtGen. The syntax is

GEN ;; phsp : f=<fraction> : c=<channel number> : dec=<decay chain>

The parameter f represents the fraction to be generated (probability by normalization to sum of all fractions), c is an arbitrary channel number being stored in the output tree, and dec the decay chain to be generated. The latter is a semicolon separated list of decays <mother> -> <daughter list>, where <mother> is a particle name and <daugher list> is a white-space separated list of particle names. It is important to note, that the first <mother> appearing in a decay chain represents the initial particle type being generated, which is in particular important in case of exclusive event reconstruction in combination with MC truth matching. For any particle appearing in the decay chain without specific decay definition, a random decay will be chosen from the particle database.

Examples:

GEN ;; phsp : f=0.25 : c=1 : dec = pbarpSystem -> Lambda0 anti-p- pi+ ; Lambda0 -> p+ pi-
GEN ;; phsp : f=0.25 : c=2 : dec = pbarpSystem -> anti-Lambda0 p+ pi- ; anti-Lambda0 -> anti-p- pi+

GEN ;; phsp : f=0.25 : c=3 : dec = pbarpSystem -> K_S0 pi+ pi- ; K_S0 -> pi+ pi-
GEN ;; phsp : f=0.25 : c=4 : dec = pbarpSystem -> pi+ pi- pi0                     # decay of pi0 according to TDatabasPDG

phsp - File Input

In order to perform background studies with generic events, it is possible to attach a file input to the phsp generator. The file input basically is a text file with a list of parametrized cross sections covering a certain center-of-mass range. The three files bundled with the package (dpm.dat, ftf_pbp.dat, ftf_pp.dat) where generated by analyzing the output of DPM and FTF generators as a function of the center-of-mass energy in the range 1.9 < E_cm < 10.0 GeV for anti-p p and pp reactions, corresponding to beam momenta in the range 0 < p < 53 GeV/c. The structure of these files looks like

id=1000 : fs=anti-n0 n0          : ecmmin= 1.879 : ecm=1.9, 2.0, ... , 5.2 : xs=13170.159070, 11503.778640, ... , 0.039760
id=1001 : fs=pi- pi0 pi0 pi+     : ecmmin= 0.549 : ecm=1.9, 2.2, ... , 9.9 : xs=10839.486784, 7289.238054, ... , 0.574722
id=1002 : fs=pi- pi0 pi+         : ecmmin= 0.414 : ecm=1.9, 2.0, ... , 9.9 : xs=9097.041614, 7537.535257, ... , 0.359201
id=1003 : fs=pi- pi- pi0 pi+ pi+ : ecmmin= 0.693 : ecm=1.9, 2.0, ... , 9.9 : xs=8401.530675, 8475.119762, ... , 1.939687
id=1004 : fs=pi- pi- pi+ pi+     : ecmmin= 0.558 : ecm=1.9, 2.0, ... , 9.9 : xs=5668.926118, 5182.442595, ... , 0.466962
.
.

where id is the channel number, fs is the list of particle of this decay channel, ecmin the threshold for production (= the sum of the daughter masses), ecm a list of center-of-mass energies, and xs the cross sections in [µb] estimated from the relative fraction and the total inelastic cross section at that energy.

To compile a list of background channels at a certain E_cm and their relative fractions, the individual cross sections are normalized to the sum of all contributing cross sections, so that each fraction computes to

\[f_j = \frac{\sigma_j}{\sum_i\sigma_i}.\]

Like for the partreader generator, it is possible to specify lists of veto and trig particles, that are exactly treated like above. An overall fraction f should be set as well for the file input, which reflects the probability to be selected for generation. Since each generic channel has a channel id being store to the output like the channel numbers c from signal channels, these can directly be used for background analysis. The tool HepFastBgAnalysis.C can be used to analyse the background.

Example:

GEN ;; phsp : f=0.8 : file=parms/ftf_pbp.dat : trig=Lambda0 cc,K_S0 : veto=n0 cc  # add generic channels; trigger Lambda0 and K_S0 and veto neutrons

Detector Basics

Back to TOC

A detector specification for HepFastSim generally has a name set by parameter name and consists of three parts:

Spatial Acceptance

Back to TOC

The acceptance basically reflects the spatial angle covered by the (active) detector. It can be specified for all three detector types in the same manner. The available parameters are

depending on how the acceptance is specified. The following possibilities are available:

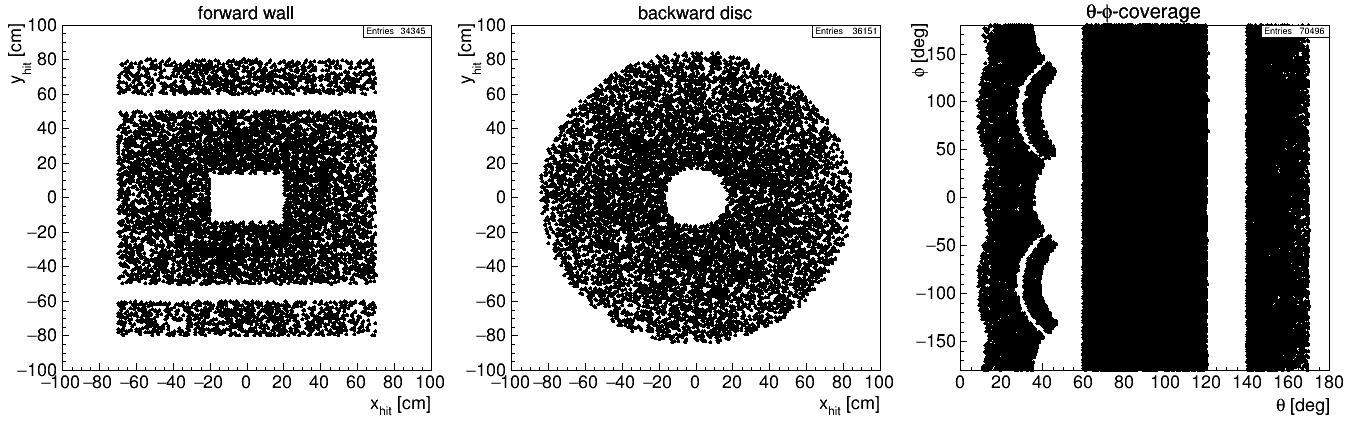

The example below leads to the acceptance coverage shown in the figure underneath.

TRK ;; name = trk1 : dist=100  : wall=70,50,20,15   # forward wall center (with rectangular hole)
TRK ;; name = trk2 : dist=100  : wall=70,10,,,,70   # forward wall top (shifted up by 70cm)
TRK ;; name = trk3 : dist=100  : wall=70,10,,,,-70  # forward wall bottom (shifted down by 70cm)
TRK ;; name = trk4 : dist=-100 : tht=140,170        # backward disc
TRK ;; name = trk5 : dist=65   : tht=60,120         # barrel part

Acceptance

Detection Efficiency

Back to TOC

The detection efficiency (parameter eff) is the probabilty that the detector is able to detect or reconstruct the particle if it hits the detector. In the simplest form it is just a constant number (0 < eff <= 1), but it can also be TFormula like expression depending on the track-parameters (p = [p], theta = [tht], phi = [phi], pt = [pt]), the tracks true origin (x = [x], y = [y], z = [z], sqrt(x2+y2) = [r]), and/or the particles mass ([m]).

TRK ;; name=trk1 : tht=30,140 : eff=0.9                    # constant detection efficiency of 90%
TRK ;; name=trk2 : tht=10,30  : eff=0.98*(1-0.02/[p]^1.6)  # functional detection efficiency

Resolution

Back to TOC

In contrast to the acceptance, the specification of the resolution depends on the type of the detector (TRK,EMC or PID). While the syntax is quite similar for TRK and EMC, it is quite different for the PID detectors strongly depending on the measured quantity like specific energy loss, Cherenkov angle, time-of-flight, etc. The details will be described in the following sections.

TRK - Tracking Detectors

Back to TOC

The main feature of tracking detectors is the performance for the reconstrution of charged particles momenta. In addition it is possible to define a vertex resolution for the position information x,y,z contributing to the overall vertex resolution. This resolution has impact in case of resonances decaying at displaced vertices. The available parameters are

While the resolutions <d_x>,<d_y>,<d_z> are constants, the expressions <d_p>, <d_tht>, and <d_phi> can either be constant numbers or functions depending on the track-parameters (p = [p], theta = [tht], phi = [phi], pt = [pt]), the tracks true origin (x = [x], y = [y], z = [z], sqrt(x2+y2) = [r]), and/or the particles mass ([m]). like the efficiency above.

Example:

TRK ;; name=trk1 : tht=30,140 : eff=0.90 : ptmin=0.2 : dp=1.7+[p]*0.31 : dtht=2/[p]+0.15 : dphi=3/[p]^0.8+0.14  # p_t-threshold, functional resolutions
TRK ;; name=trk2 : tht=10,30  : eff=0.95 : dp=2 : dtht=4 : dphi=5 : dvtx=0.2,0.2,0.8                            # flat tracking resolutions and vertex resolution

EMC - Photon Detectors

Back to TOC

The configuration of photon detector is very similar to that of tracking detectors. Instead of the momentum resolution an energy resolution de needs to be specified, and a possible threshold emin corresponds to the minimum photon energy to be detected. Naturally a vertex resolution is not available for EMC like detectors. There is a preliminary implementation for the generation of electro-magnetic split-offs available. This feature can add additional photons to the event for charged tracks hitting the corresponding photon detector. The available parameters are

Example:

EMC  ;;  name = emcfw  : tht=  5, 21 : eff=0.97: emin=0.03 : dtht=2.1/sqrt([e]) : dphi=2.1/sqrt([e]) : de=sqrt(5.8/[e] + 0.74)              : splitpars=0.8,0.15,0.25,0.16  # EMC forward endcap
EMC  ;;  name = emcbar : tht= 20,140 : eff=0.97: emin=0.03 : dtht=4.7/sqrt([e]) : dphi=4.7/sqrt([e]) : de=sqrt(0.026/[e]^2 + 6.1/[e] + 5.4) : splitpars=0.8,0.15,0.25,0.16  # EMC barrel
EMC  ;;  name = emcbw  : tht=140,160 : eff=0.97: emin=0.03 : dtht=8.0/sqrt([e]) : dphi=8.0/sqrt([e]) : de=sqrt(4.0/[e]^2 + 9.0/[e] + 1.0)   : splitpars=0.8,0.15,0.25,0.16  # EMC backward endcap

PID - Particle Identification Detectors

Back to TOC

The setup of PID detectors is a bit more complicated simply due to the fact, that they deliver a large variety of measurements compared to pure tracking and photon detectors. Some types of detectory purely deliver PID information like ToF or RICH detectors, while others have combined functions. This could e.g. be tracking detectors, which often provide the specific energy loss of the tracks being useful for particle identification in addition to the momentum measurement, or EMCs providing the deposited cluster energy also associated with charged particles. In case a detector provides PID information in addition to track or photon detection, an indiviual PID detector component only covering the PID part must be defined.

The default approach to model the response of a PID detector is to provide a set of mass (= particle) dependent expectations values and corresponding resolutions for the measured quantity, assuming, that the likelihood of the measurement has Gaussian shape. With this information the current “measurement” is generated as a random value from the likelihood for the true particle type, and the evaluate all likelihoods at this concrete position to determine either chi2 or the function value itself for each particle hypothesis. In case the assumption of a Gaussian likelihood is completely unjustified, it is also possible to provide the (more realistic) likelihoods as a histogram for each particle type. The available parameters are

The different methods for setting up PID detectors are

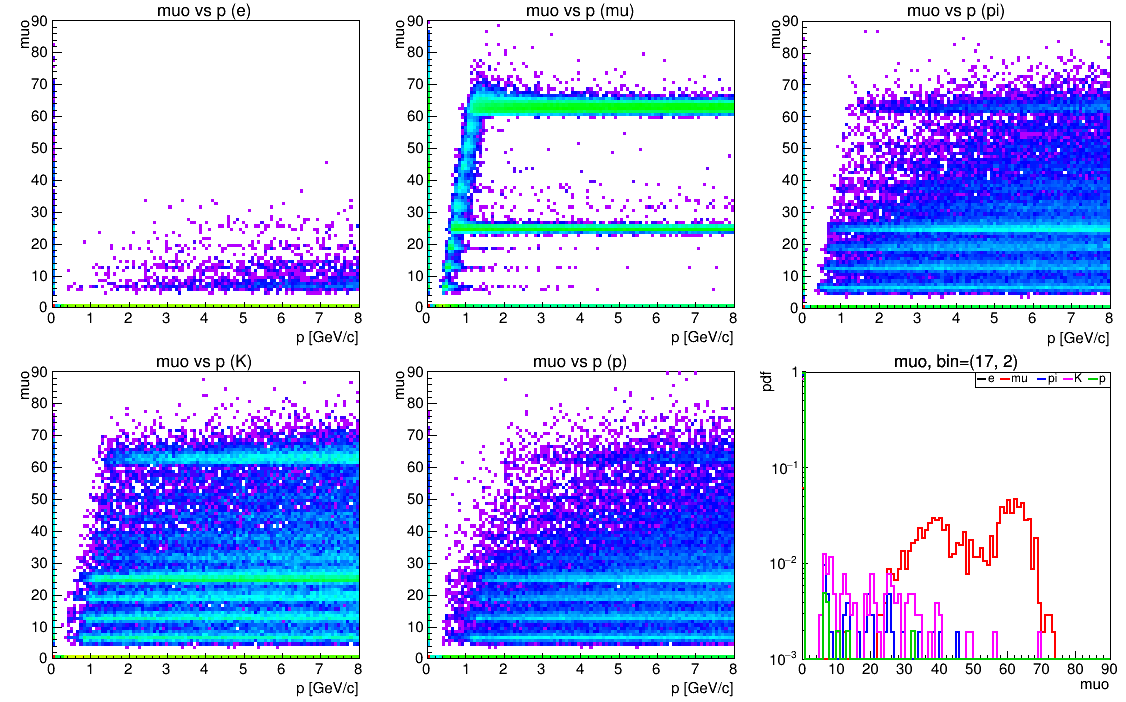

PID Pdf

PID Templates

Since the analytical expressions of the particle dependent expectation values are well known for many PID systems (like Cherenkov angle from RICHs or dE/dx from tracking detectors), some are already prepared as templates and can be directly used. There are also some empirical models for E/p measurements form calorimeters and the penetration depth in RPC detectors (both to be used with a grain of salt.) The template definitions are in the file cfg/pid_templates.cfg and can be extendend by the user. Adding a template works exactly like definitions of the functions pidexp, pidres, pidthr, and all needed parameters, together with setting the parameter template = <template name>. The name <template name> can then be used in the detector configuration as keyword (=flag) to use this template. Any template parameters set in the configuration will simply override the corresponding default settings in the template.

The templates currently available are:

An example detector ensemble could look like this:

PID  ;;  name = dirc : dircb  : tht= 22,140 : eff=0.98                         # DIRC template (barrel)
PID  ;;  name = stt  : dedx   : tht= 22,140 : eff=0.98 : pidres=0.08 : relres  # dE/dx template (STT)
PID  ;;  name = mvd  : dedx   : tht= 22,140 : eff=0.96 : pidres=0.20 : relres  # dE/dx template (MVD)
PID  ;;  name = emc  : eoverp : tht=  5,160 : eff=0.98                         # EMC template (complete)
PID  ;;  name = tofb : tofb   : tht= 22,140 : eff=0.98 : dist=50  : dt=0.14    # ToF template (barrel)
PID  ;;  name = tofw : tofw   : tht= 10, 20 : eff=0.98 : dist=150 : dt=0.14    # ToF template (fwd wall)

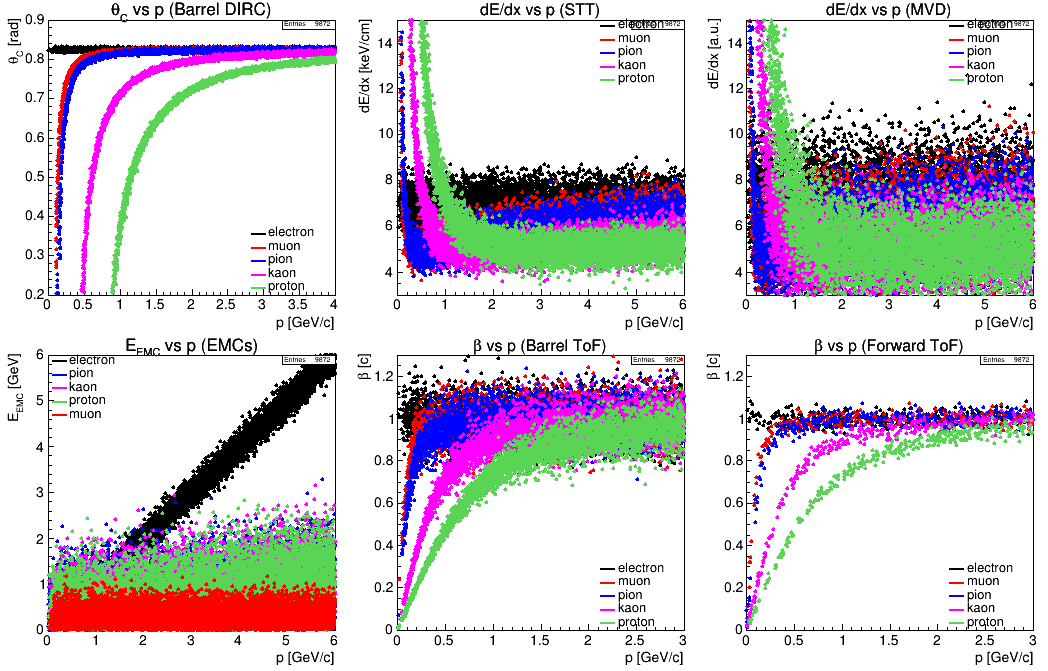

PID Example

Overall PID

The computation of the overall PID probability for a certain particle hypothesis of a charged particle candidate is based on all PID responses it got from the various detectors. There are two approaches depending on the setting pidmode:

REC - Reconstruction/Analysis

Back to TOC

The REC statement initiates a certain reconstruction process. This typically has the following syntax

REC ;; dec = <decay chain> : <variable>(<particle>) = <range> : store(<particle>, <tree>) = <store options>

and consists of the three parts:

Combinatorics

Reconstruction of composite particles is defined via the keyword dec. The composites to be reconstructed are specified in <decay chain>, where <decay chain> is a semicolon separated list of decays of the form <mother> -> <daughters list>. This is identical to the syntax for phsp with the difference, that here the decay chain has to be declared bottom up, i.e. the reconstruction of non-final-state particle used for combinatorics must be defined before usage. The decay chain can consist of only one decay specification, or of multiple. If the used wants to store only information about the event or non-composite particles (= final states), a dec statement is not necessary.

Example:

REC ;; dec = J/psi -> mu+ mu- ; pbarpSystem -> J/psi pi+ pi- : ...  # reconstruct J/psi and pbarpSystem

Selection

Various selection criteria can be applied to any of the particle candidates present at that time if desired. This includes also composites from previous REC instructions. There are several properties that can be used to apply a selection criterion on. By prepending an exclamation mark (!) any cut can be applied in veto mode.

<variable> Meaning
p momentum
pt transverse momentum
m invariant mass
e energy [GeV]
tht polar angle theta [rad]
phi angle phi [rad]
pide PID probability electron
pidmu PID probability muon
pidpi PID probability pion
pidk PID probability kaon
pidp PID probability proton
chg electrical charge
abschg absolute value of charge
md mass difference to first daughter

Example:

REC ;; dec = J/psi -> mu+ mu- ; pbarpSystem -> J/psi pi+ pi- : ...   # reconstruct J/psi and pbarpSystem
       pidmu(mu+-)=0.1,1 : p(pi+-)=0,0.5 : m(J/psi)=2.9,3.3 : ...    # apply PID, momentum and mass selection for combinatorics
       !pidpi(mu+-)=0.1,1                                            # apply veto cut on pion PID for muon candidates

It should be emphasized, that any kind of selection does not modify the original lists but is only applied just before combinatorics or storage. I.e. in the above example, the lists of mu+ and mu- still contain also candidates with pidmu < 0.1, and the list of J/psi still those candidates outside the selected mass window.

Adding Lists

When creating list by combinatorics, it is possible to append a list to a previously generated list, which can be achieved by the keyword add in the dec statement. This can be useful, as shown in the following example:

REC  ;;  dec= phi -> K+ K-       :  pidk(K+)=0.01 # reco phi -> K+ K- with PID on K+ only
REC  ;;  dec= phi -> K+ K- add   :  pidk(K-)=0.01 # reco phi -> K+ K- with PID on K- only, added to previous list

Here, the phi -> K+ K- is reconstructed with PID selection either on the K+ or on the K-. Caution: Lists with different (number of) final states should not be added, because this will screw the output tree.

Storage

The store statement configures what part of the information is stored to the TTree in the output file. It has to parameters, the particle (or list) name <particle>, and a tree name <tree>. The assigned value is a list of storage options. The relationship of these ‘local’ storage options and the stored branches is documented in Appendix / TTree Branch Names. Although perhaps unexpectedly, kinematic and mass costraint fitting is enabled via the store statement as well. This allows to choose fitting for each analysis TTree individually.

<option> Meaning
evt event related info
cand candidate related info
shape event shape variables
fit4c results of 4C fit
fitmass(<list>) mass constraint for particle names in ‘;’ separated <list>
precut(<cut>) <cut> to be applied to TTree before storage

The possibilty to apply a pre-cut to the TTree on the fly adds another way of applying a selection to the list of candidates, but in a destructive way. It also offers a good opportunity to save disc space (and I/O load) to remove candidates which are not interest anyways.

Example:

REC ; dec = pi0 -> gamma gamma; J/psi -> mu+ mu-; chi_c0 -> J/psi gamma; pbarpSystem -> chi_c0 pi0 : store(pbarpSystem) = evt,cand,fit4c,fitmass(pi0;J/psi),precut(abs(xd0d0m-3.097)<0.3)

Generator Only

The usage of the REC statement is not mandatory to run the simulation. If the REC definition is skipped, only the data from generator is stored in the TTree nmc, if the global option flag nmc is set. Live histogramming is still possible using this tree.

Example:

OPT  ;; nmc
GEN  ;; box : p=1,2 : tht=22,140 : pdg=pi+- : mult=1
HIST ;; tree=nmc : hist=0,3,0,180 : var=p,tht*57.3 : opt=col

With this configuration file, only the box generator is run, and a 2D plot p vs. theta is produced from the generated data.

HIST - Live histograms

Back to TOC

The HIST statement allows to generate live histogram from the information stored in the tree with a quite low effort. The configuration comprises many options from the generic underlying TH1F/TH2F histograms, and a smart way of anticipation minimizes plotting in the same canvas. The general syntax is

HIST ;; tree = <tree name> : hist = <histogram dimensions> : <parameters>

with the available keywords/options

<option> Meaning
tree = <name> name of the tree to plot from; default: ntp0
hist = <dim> histogram dimensions (2-6 parameters)
var = <v_x>[,<v_y>] variable exrpession(s) to plot; default: xm
cut = <expression> arbitraty cut formula based on tree branches
min = <min_y> minimum of y-axis
title = <t>[;<tx>;<ty>] title of histogram, x-, and y-axis
opt = <opt> draw option
nostat flag: switch off statistics box
leg = <entry> legend entry text; default:
legtxt = <size> legend text size; default: 0.04
legwid = <width> legend width; default: 0.25
legpos = <pos code> legend position: tl, tr, bl, br (t=top, b=bottom, l=left, r=right)
noleg flag: switch off legend
logy flag: set log y-axis
logz flag: set log z-axis (2D plot)
divx = <ndiv_x> n-divisions for x-axis; default: 510
divy = <ndiv_y> n-divisions for y-axis; default: 510
color = <color> line/marker color; default: automatic choice
linewid = <width> line width; default: 2
mstyle = <style> marker style; default: 20
msize = <size> marker size; default: 0.5

The parameter list <dim> to define the histogram consists of 2-3 (1D histogram) or 4-6 (2D histogram) parameters. The rules are:

Examples:

HIST ;; hist=2,4                                                    # plot 'xm' from TTree 'ntp0' in range 2..4 (100 bins)
HIST ;; hist=200,2,4 : cut=xmct                                     # plot 'xm' with MC truth match ('xmct==1') in range 2..4 (200 bins)
HIST ;; tree=ntp2 : hist=0,3 : var=xp : cut=abs(xm-0.13)<0.02       # plot 'xp' from 'ntp2' with given selection cut
HIST ;; tree=ntp2 : hist=10,21,0,2.5 : var=xdal01,xdal12 : opt=col  # Dalitz plot with 10 < xdal01 < 21 and 0 < xdal02 < 2.5 (draw option 'col')
HIST ;; tree=nmc  : hist=0,3,0,180 : var=p,tht*57.3 : opt=col       # plot p vs. theta (in degrees) from generated events

Overlaying histograms

Sometimes it is useful to draw multiple histograms to the same pad for direct comparison. If the draw option <opt> contains the keyword same (just like in ROOT), the drawing engine overlays the plot to the current pad instead of the next one. Since it happens quite frequently that many setting in the histogram being overlay are identical to the previous one (histogram dimensions, variable, tree, title, …), those identical settings don’t need to be specified again. In that case, the color is automatically chosen, so that only very few settings have to be given explicitly. The setting opt=same is automatically enabled if hist is not set, so that even that can be omitted. An example (used for the PID quantity plots above) looks like this:

HIST ;;  tree=ntp0 : hist=200,0,4,200,0.2,0.9 : var=xp,xdirc : cut=abs(xtrpdg)==11 : leg = electron : title=\theta_{C} vs p (Barrel DIRC);p [GeV/c];\theta_{C} [rad]: legpos=br
HIST ;;  cut=abs(xtrpdg)==13   : leg = muon
HIST ;;  cut=abs(xtrpdg)==211  : leg = pion
HIST ;;  cut=abs(xtrpdg)==321  : leg = kaon
HIST ;;  cut=abs(xtrpdg)==2212 : leg = proton

Only the first histogram has a lengthy definition, while for the other particle types just the new cut and legend entry is set.

Using Variables

Beside setting the available parameters for OPT, it is possible to use parameters with arbitrary names starting with $ as variables, which later can be used in the rest of the configuration file and are globally replaced. This feature is very useful if (part of) the simulation setup should be controlled dynamically by command line parameters. All variables must be set either in an OPT statement or within the additional option string being the third parameter of the steering macro HepFastSim.C (see Running the Simulation).

E.g. the configuration setup

[demo_var.cfg]
  OPT ;; $thtrng=20,160 : $dp=1
  TRK ;; name=trk : tht=$thtrng : dp=$dp : dtht=1 : dphi=2

root [0] HepFastSim(1000, "demo_var.cfg")

results in the detector setting TRK ;; name=trk : tht=20,160 : dp=1 : dtht=1 : dphi=2, but when called as

root [1] HepFastSim(1000, "demo_var.cfg", "$thtrng=30,120 : $dp=2")

been modified to TRK ;; name=trk : tht=30,120 : dp=2 : dtht=1 : dphi=2. Take a look at the more comprehensive example Demos - Using Variables

Proceed to the next section: Running on Virgo
